· This valve features a rapid response, ensuring precise and timely system operation
· With a lifespan of tens of millions to over 100 million cycles, it offers exceptional durability and significantly reduces maintenance costs
· Supporting flexible installation orientations and multiple wiring options, it easily adapts to various system layouts
|
Series
|
Option
|
| 3020 | 3 |
| 5020 | 5 |
| 7020 | 7 |
|
Electronic control method
|
Option
|

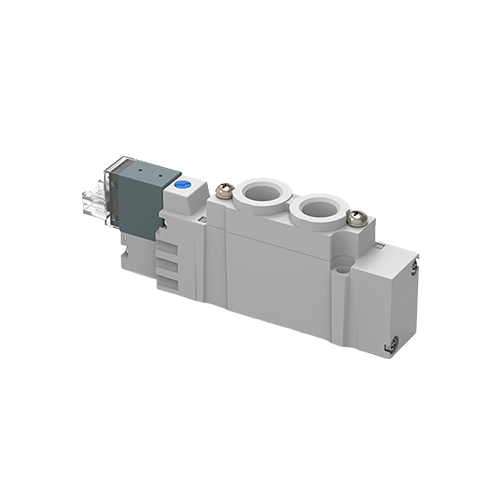

| 5/2 Single electronic control | 1 |
|

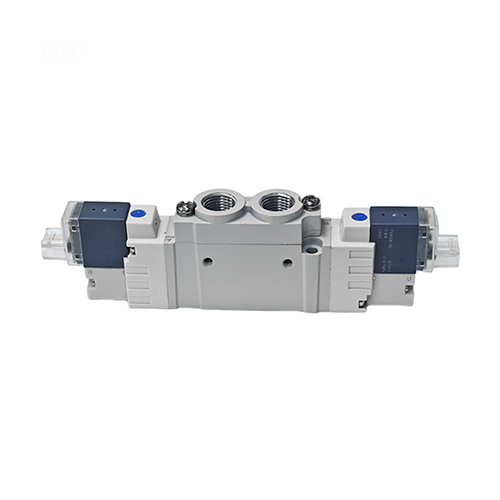

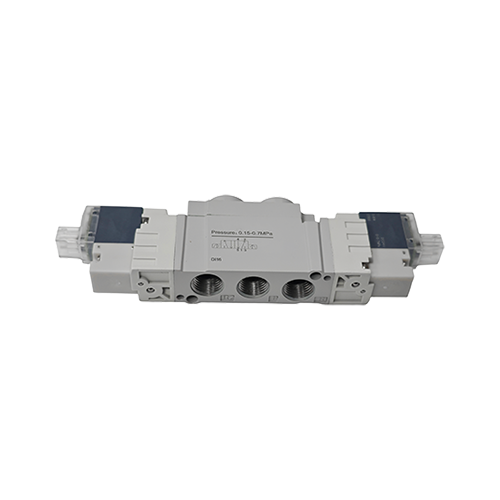

5/3 Dual electronic control
|
2 |
| 5/3 Mid-closed type |
3
|
| 5/3 Mid-exhausted type |
4
|
| 5/3 Mid-pressurised type | 5 |
|
Form
|
Option
|
|
Normalized form
|
20N |
|
Voltage
|
Option
|
| 24V DC | 5 |
| Wiring lead-out method |
Option
|
|
Type E socket
|
E |
|
Type P socket
|
P |
| Wire length Type |
Option
|
| 300mm | - |
| 1000mm | 1 |
| 2000mm | 2 |
| 3000mm | 3 |
| 5000mm | 5 |
|
Connection diameter
|
Applicable type
|
Option |
| Threaded piping | ||
| M5 Thread | PSY3020 | M5 |
| Rc1/8 | PSY5020 | 01 |
| Rc1/4 | PSY7020 | 02 |
| Quick connect fitting | ||
| 4mm Air hose | PSY3020 | C4 |
| 6mm Air hose | PSY5020 | C6 |
| 8mm Air hose | PSY7020 | C8 |
| 10mm Air hose | PSY7020 | C10 |
Note: Please select the appropriate configuration based on your actual application requirements. If you have any questions, please contact technical support.
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
