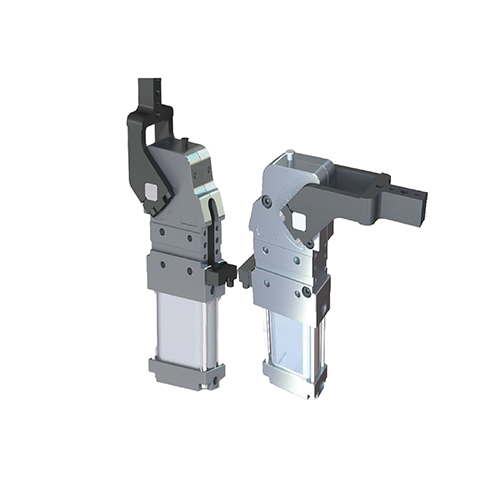

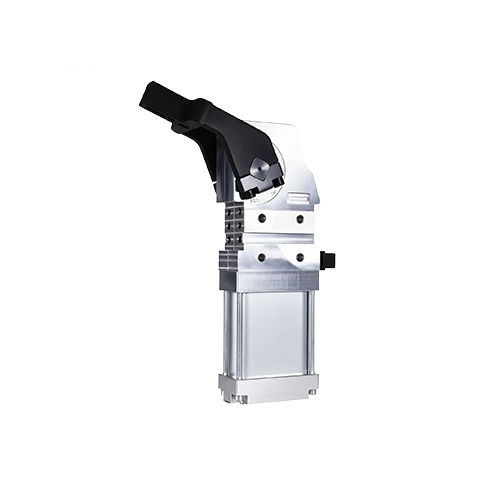

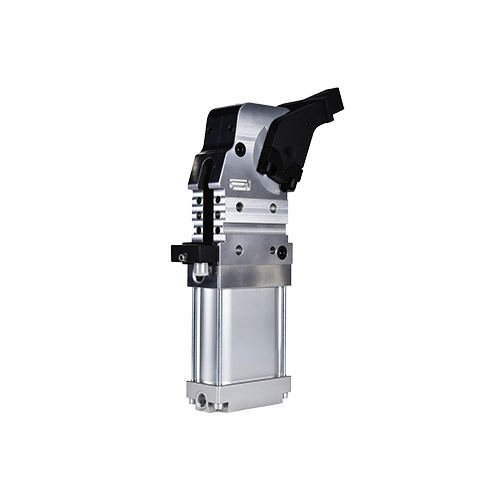

· Integrated clamp with crank linkage, mechanical self-locking structure
· Infinitely adjustable within a maximum opening angle range of 5°-135°high-strength aluminum alloy enclosed housing
· Flat oval cylinder barrel in sizes 40/50/63/80
· Clamping arm with standard mounting holes, installable on four sides>
· Optional built-in inductive sensor (SE) and pneumatic sensor (SP), both resistant to weld spatter
· Optional sensors for detecting end positions (open/clamped)
|
Series
|
Option
|
|
Horizontal clamping
cylinder
|
CA
|
|
Vertical clamping
cylinder
|
2CA
|
| Bore |
Option
|
|
40mm Oval cylinder barrel
|
40
|
|
50mm Oval cylinder barrel
|
50
|
|
63mm Oval cylinder barrel
|
63
|
|
80mm Oval cylinder barrel
|
80
|
|
Bore
|
Clamping arm type
|
|
40mm
Oval cylinder barrel
|
A10/A11/A12
A50/A51/A52
|
|
50/63/80mm
Oval cylinder barrel
|
A10/A11/A12
A40/A41/A42
A90/A91/A92
|
|
Sensor type
|
Option
|
|
Without sensor
|
SN |
|
Inductive sensor
|
SE |
|
Pneumatic sensor
|
SP |
|
Opening angle
|
Option
|
|
Horizontal clamping
cylinder
5°~135°
Infinitely adjustable
|
5°~135°
|
|
Vertical clamping
cylinder
5°~120°
Infinitely adjustable
|
5°~120°
|
Note: Please select the appropriate configuration based on your actual application requirements. If you have any questions, please contact technical support.
