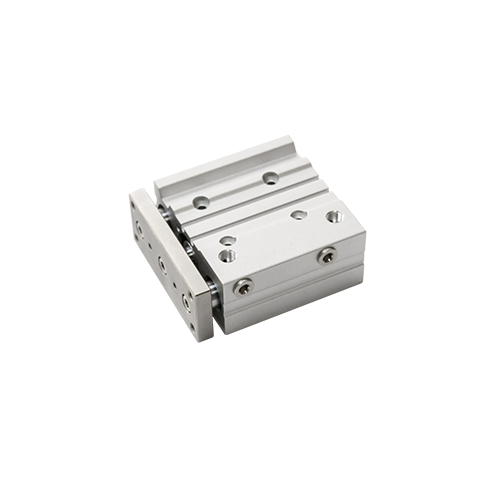

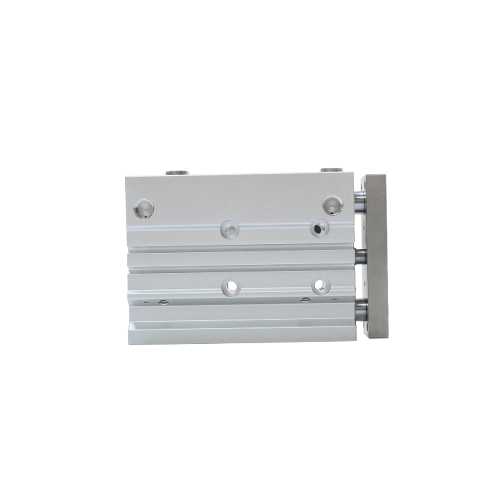

· JIS-standard circular magnetic slot
· The fixing plate is nickel-plated chemically, offering strong corrosion resistance
· Minimum starting pressure: ≤0.05 MPa, significantly improving cylinder operational consistency
· The average clearance between the guide rod and the guide sleeve is less than 0.04 mm
|
Bore
|
Option
|
|
12
|
12
|
|
16
|
16
|
|
20
|
20
|
|
25
|
25
|
|
32
|
32
|
|
40
|
40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 100 | 100 |
| Stroke |
Option
|
|
10
|
10
|
| ...... | ...... |
|
Maximum
|
400 |
|
Magnet Code
|
Option
|
| With |
S
|
| Witnout | - |
|
Thread
|
Option
|
| G | - |
| PT | T |
| NPT | N |
Note: Please select the appropriate configuration based on your actual application requirements. If you have any questions, please contact technical support.
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
