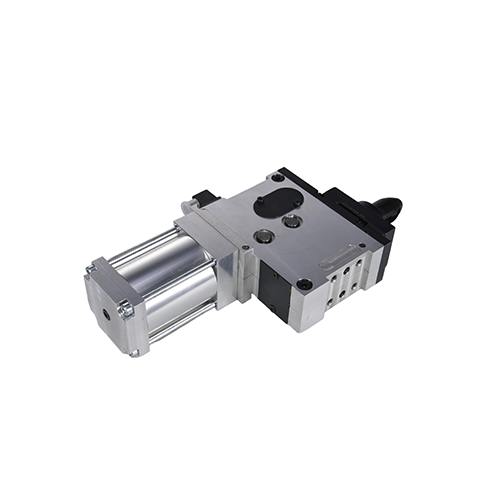

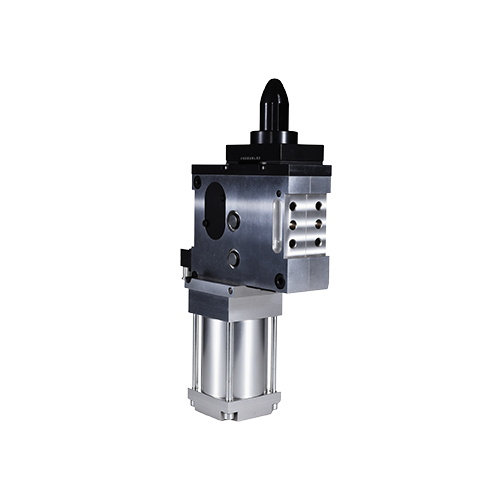

· Subplate clamping unit for workpiece locating and clamping
· Custom-designed locating pin, diameter 20-40mm
· Clamping hook driven by a cylinder
· High-strength aluminum alloy housing with standard mounting holes on both sides
· Self-locking mechanism
· Optional: Sensors for detecting end positions (open/clamped)
|
Bore
|
Option
|
|
32mm Oval cylinder barrel
|
32
|
|
60mm Oval cylinder barrel
|
60
|
|
Pin type and diameter
|
|
A 20~40mm
|
|
B 20~40mm
|
|
C 20~40mm
|
|
Sensor type
|
Option
|
|
Without sensor
|
SN |
|
Inductive sensor
|
SE |
|
Pneumatic sensor
|
SP |
| Other |
Option
|
|
Support block height + Plate thickness
|
L2+X |
Note: Please select the appropriate configuration based on your actual application requirements. If you have any questions, please contact technical support.
