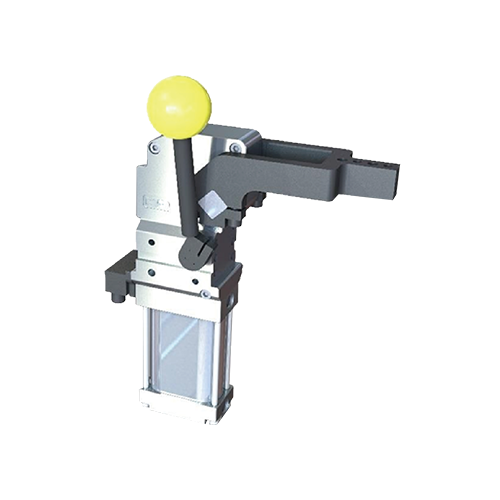

· Integrated clamp with crank linkage, mechanical self-locking structure
· Infinitely adjustable within a maximum opening angle range of 5°-135°high-strength aluminum alloy enclosed housing
· Flat oval cylinder barrel in sizes 40/50/63/80
· Clamping arm with standard mounting holes, installable on four sides
· Optional built-in inductive sensor (SE) and pneumatic sensor (SP), both resistant to weld spatter
· Optional sensors for detecting end positions (open/clamped)
|
Series
|
Option
|
|
Horizontal clamping
cylinder
|
CH
|
|
Vertical clamping
cylinder
|
2CH
|
|
Bore
|
Option
|
|
40mm Oval cylinder barrel
|
40
|
|
50mm Oval cylinder barrel
|
50
|
|
63mm Oval cylinder barrel
|
63
|
|
80mm Oval cylinder barrel
|
80
|
|
Bore
|
Clamping arm type
|
|
40mm
Oval cylinder barrel
|
A10/A11/A12
A50/A51/A52
|
|
50/63/80mm
Oval cylinder barrel
|
A10/A11/A12
A40/A41/A42
A90/A91/A92
|
|
Sensor type
|
Option
|
|
Without sensor
|
SN
|
|
Inductive sensor
|
SE
|
|
Pneumatic sensor
|
SP
|
|
Opening angle
|
Option
|
|
Horizontal clamping
cylinder
40mm bore
Infinitely adjustable
|
5°~135°
|
|
Horizontal clamping
cylinder
50/63/80mm bore
5°~115°Infinitely adjustable
|
5~120°
|
|
Vertical clamping
cylinder
40mm bore
5°~110°Infinitely adjustable
|
5°~110°
|
|
Vertical clamping
cylinder
50/63/80mm bore
5°~105°Infinitely adjustable
|
5°~105°
|
Note: Please select the appropriate configuration based on your actual application requirements. If you have any questions, please contact technical support.
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
