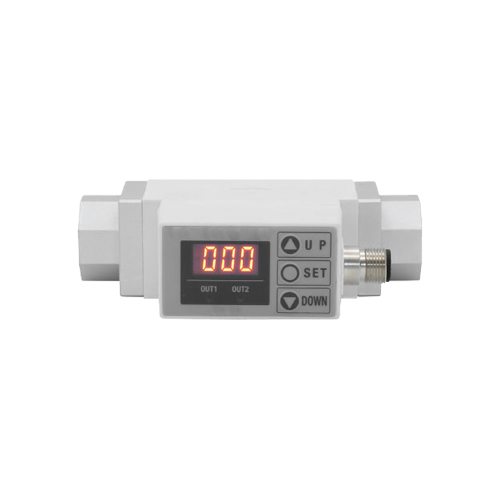

· Flow rate setting and monitoring are possible
· Displays both instantaneous and accumulated flow rates

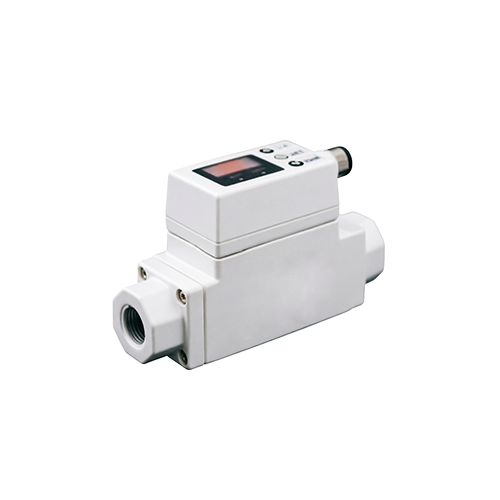

· Available in both integrated and separate types
· Features dual outputs with independent flow rate settings
· Supports switching output, accumulated pulse output, and analog output
| Rated flow rate range |
Option
|
| 1~10L/min | 10 |
| 5~50L/min | 50 |
|
10~100L/min
|
11 |
|
20~200L/min
|
21 |
|
50~500L/min
|
51 |
| Thread |
Option
|
| Rc | - |
| NPT | N |
|
G
|
F |
| Pipe size | Option |
| 1/8 inch | 01 |
| 1/4 inch | 02 |
| 3/8 inch | 03 |
| 1/2 inch | 04 |
| Output Specifications | Option |
| NPN(2 Output) | 27 |
| PNP(2 Output) | 67 |
| NPN(1 Output)+Analog output(1~5V) | 28 |
| NPN(1 Output)+Analog output(4~20mA) | 29 |
| PNP(1 Output)+Analog output(1~5V) | 68 |
| PNP(1 Output)+Analog output(4~20mA) | 69 |
| Modbus Communication Type | MB |
|
Lead Wire Note1）
|
Option
|
|
Lead wire without connector
|
N
|
|
Lead wire without connector
(Straight-through type、3m)
|
-
|
| Unit specifications | Option |
| With unit switching function | N |
| Fixed unit | M |
Note 1): Lead wires are not connected to the product.
