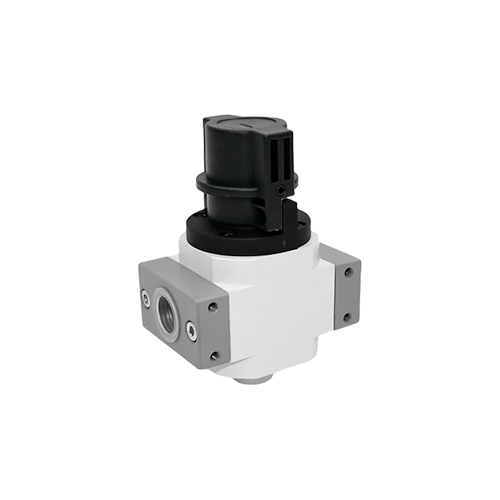

· 2/3-way manual control valve: Exhausts air in the closed position; enables inline exhaust via threaded ports; switching position is visually identifiable in real time
· Electrically operated control valve: Used for pressurization and exhaust; available with push-type or button-type manual override; three voltage ranges are available; solenoid coil can be repositioned in 4 x 90° increments
· Pneumatically operated control valve: Used for pressurization and exhaust in pneumatic systems; can be used as a single unit or combined with other series modules; this model is specifically designed for use in explosion-proof environments
|
Series
|
Option
|
| Manual control | - |
| Electric control | E |
| Pneumatic control | P |
|
Interface size
|
Option
|
|
G1/8
|
1/8
|
|
G1/4
|
1/4
|
|
G3/8
|
3/8
|
|
G1/2
|
1/2
|
|
G3/4
|
3/4
|
|
G1
|
1
|
|
Specifications
|
Option
|
|
Small-sized
|
MINI
|
|
Medium-sized
|
MIDI
|
|
Large-sized
|
MAXI
|
|
Voltage
|
Option
|
| 24VDC | 24 |
|
110VAC
|
110 |
|
230VAC
|
230 |
Note: Select the appropriate configuration based on your specific application requirements. For any questions, please contact technical support.
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
