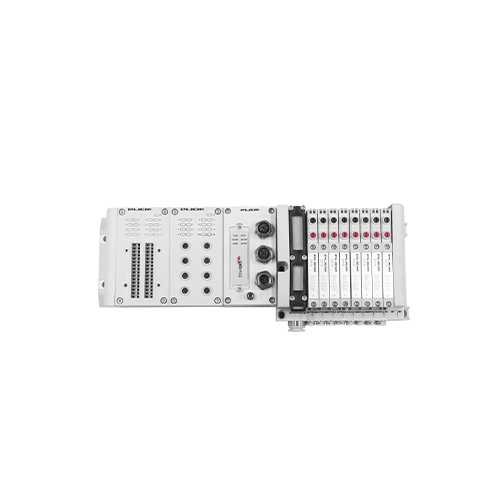

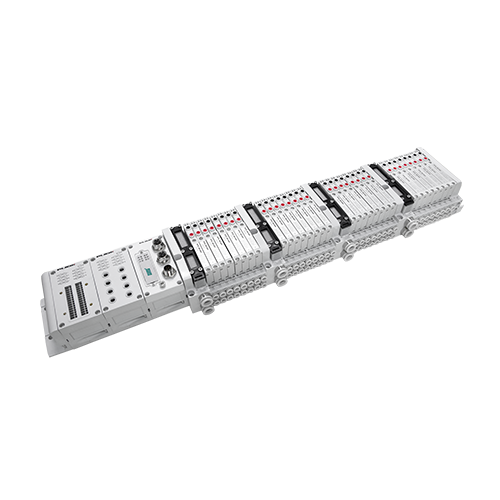

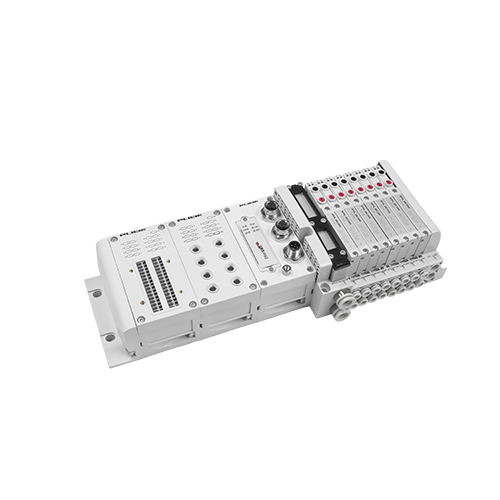

· Economical Valve Island with Integrated Design
· Supports up to 9 I/O modules
· Pressure Zoning for Multi-Pressure Applications
· Up to 8 valve functions, 0.4W power consumption per solenoid valve
· Available in plastic and metal materials
|
FS 注1）
|
Option
|
|
DI-M8 module
|
DI-M8
|
|
DI-MJ module
|
DI-MJ
|
|
DO-M8 module
|
DO-M8
|
|
DO-MJ module
|
DO-MJ
|
|
Bus Protocol
|
Option
|
|
EtherCAT
|
EC
|
|
EtherNet/lP
|
EP
|
|
IO-Link
|
IL
|
|
PROFINET
|
PN
|
|
Multiplole Sub-D Note2）
|
MP |
|
PROFIBUS-DP
|
DP
|
|
CC-Link
|
CC
|
|
DeviceNet
|
DN
|
|
Modbus-RTU Note2）
|
MT
|

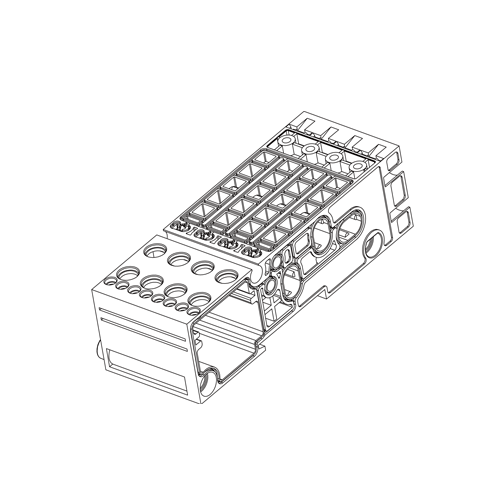

| Valve plate base | Option |
| 10mm | A |
| 14mm | B |
| 18mm | C |

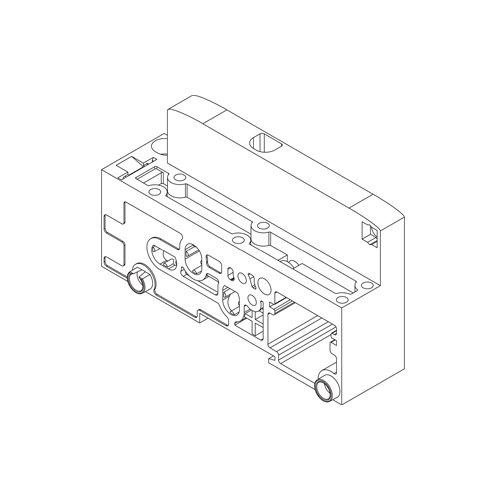

| Auxiliary intake Note3） | U |
|
Function
|
Option
|
|
5/2 single solenoid,pneumatic spring
|
M
|
|
5/2 double solenoid
|
J
|
|
5/3 pressurised
|
B
|
|
5/3 closed
|
G
|
|
5/3 exhaused
|
E
|
|
2x3/2 NC/NC
|
K
|
|
2x3/2 NO/NO
|
N
|
|
2x3/2 NC/NO
|
H
|
|
5/2 single solenoid mechanical spring
|
O
|
|
Blanking plate
|
L
|
| Number of configurations | Option |
| 1 | 01 |
| 2 | 02 |
| ...... | ...... |
| Maximum | 64 |
|
Base Material
|
Option |
|
Synthetic resin
|
P |
| Metal | M |
Note 1):More than 9 electrical modules needauxiliary power supply
Note 2):MP and IL cannot be powered
Note 3):Auxiliary air intake supports pressurezoning
T-Partition: Port 1;TS-Partition: Ports 3 and 5;TST-Partition: Ports 1, 3, and 5.
Industries such as semiconductors and 3C electronics are evolving at a rapid pace, with 5G, digital technologies, and e-mobility emerging as key future directions. New drive and control technologies must combine flexibility, intelligence, and high energy efficiency. Valve islands, featuring modular design and smart diagnostics, are ideally positioned to meet these evolving production demands. Their key features include:
• Compact and micro-sized design to meet spatial constraints
• Diverse I/O interface options to flexibly adapt to various application scenarios
• Integrated valves, signals, and communication to maximize cost savings
• Support for multiple protocols and network topologies
• Bus control for vacuum functions and I/O points
Safety and efficiency are paramount in the food and medical industries.The combination of valve islands and electric drive systems meets high-efficiency production requirements by optimizing production costs through precise dosing control, while ensuring uncompromising food quality. Their key features include:
• Robust IP protection rating
• Food-grade lubricants
• Hygienic design and appearance
• Diverse digital and analog I/O options
• Wireless control (optional)
Rapid technological iterations in the lithium battery and solar industries are driving the global clean energy transition and advancing carbon neutrality goals.
As a critical control component, the valve island features the following functions:
•Control of various valves
•Additional I/O for controlling electrically actuated valves, integrating sensors, or creating closed-loop control circuits
•Execution of diagnostics and remote maintenance functions
