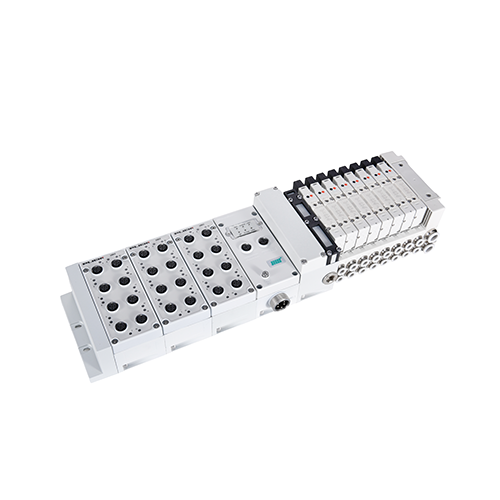

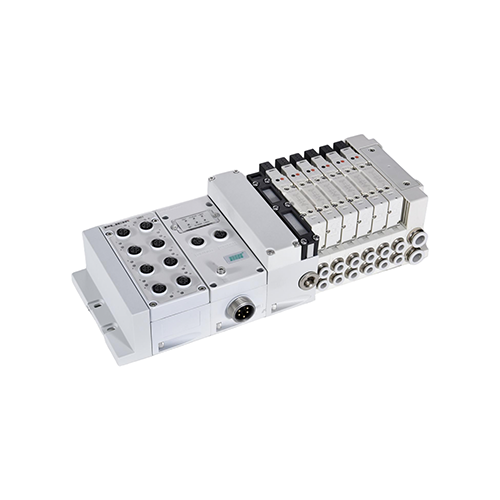

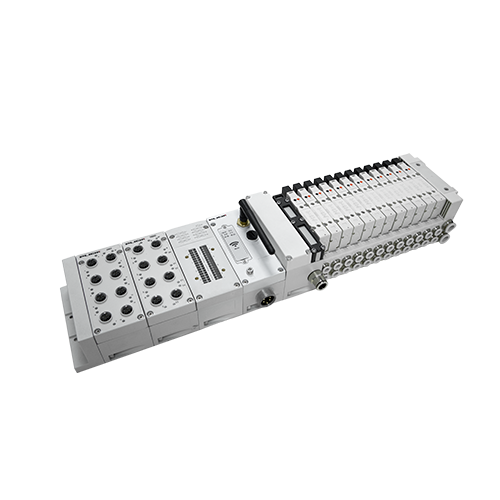

· Fully Functional Universal Smart Valve Island
· Designed for medical, food, and other industries with modular multi-functionality
· Metal valve body with plastic base plate, IP67 rated
· Service life up to 100 million cycles
· Supports up to 32 coils
|
Electrical modules Note1)
|
Option
|
|
0 IO moudle
|
0
|
|
......
|
......
|
|
9 IO moudle
|
9
|
| FS |
Option
|
| DI moudle | DI |
|
DI moudle（NPN）
|
NDI |
|
DI-MJ moudle
|
DIMJ |
| DI-M8 moudle | DIM8 |
| DO moudle | DO |
| DO Sub-D moudle Note2) | DOMP |
| AI moudle | AI |
| AO moudle | AO |
| Bus Protocol |
Option
|
|
EtherCAT
|
EC
|
|
EtherNet/lP
|
EP
|
|
IO-Link Note2)
|
IL
|
|
PROFINET
|
PN
|
|
PROFIBUS-DP
|
DP
|
|
CC-Link
|
CC
|
|
DeviceNet
|
DN
|
|
Multipole Sub-D Note2）
|
MP
|
|
WIFI
|
WI
|
|

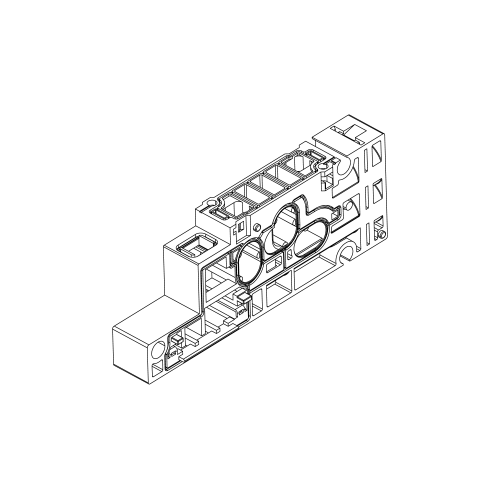

Valve plate base
|
Option
|
|
10mm
|
A
|
|
15mm
|
B
|
|

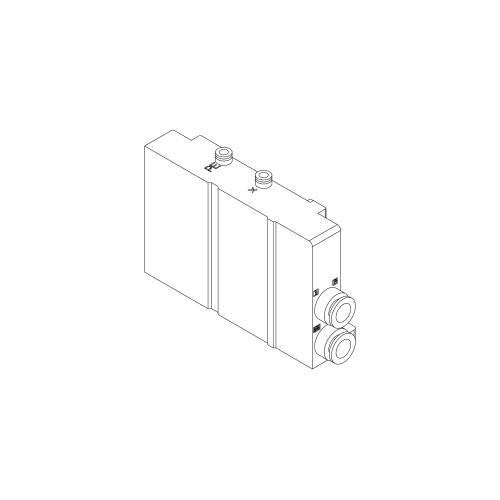

Right end plate
|
V |
|
Right end plate+Sub-D 25pin
|
V4 |
|
Function
|
Option
|
|
5/2 single solenoid,pneumatic spring
|
M
|
|
5/2 double solenoid
|
J
|
|
5/3 pressurised
|
B
|
|
5/3 closed
|
G
|
|
5/3 exhaused
|
E
|
|
2x3/2 NC/NC
|
K
|
|
2x3/2 NO/NO
|
N
|
|
2x3/2 NC/NO
|
H
|
|
5/2 single solenoid mechanical spring
|
O
|
|
Blanking plate
|
L
|
|
Auxiliary intake Note3)
|
U |
| Number of configurations | Option |
| 1 | 01 |
| 2 | 02 |
| ...... | ...... |
| Maximum | 24 |
Industries such as semiconductors and 3C electronics are evolving at a rapid pace, with 5G, digital technologies, and e-mobility emerging as key future directions. New drive and control technologies must combine flexibility, intelligence, and high energy efficiency. Valve islands, featuring modular design and smart diagnostics, are ideally positioned to meet these evolving production demands. Their key features include:
• Compact and micro-sized design to meet spatial constraints
• Diverse I/O interface options to flexibly adapt to various application scenarios
• Integrated valves, signals, and communication to maximize cost savings
• Support for multiple protocols and network topologies
• Bus control for vacuum functions and I/O points
Safety and efficiency are paramount in the food and medical industries.The combination of valve islands and electric drive systems meets high-efficiency production requirements by optimizing production costs through precise dosing control, while ensuring uncompromising food quality. Their key features include:
• Robust IP protection rating
• Food-grade lubricants
• Hygienic design and appearance
• Diverse digital and analog I/O options
• Wireless control (optional)
Rapid technological iterations in the lithium battery and solar industries are driving the global clean energy transition and advancing carbon neutrality goals.
As a critical control component, the valve island features the following functions:
•Control of various valves
•Additional I/O for controlling electrically actuated valves, integrating sensors, or creating closed-loop control circuits
•Execution of diagnostics and remote maintenance functions
