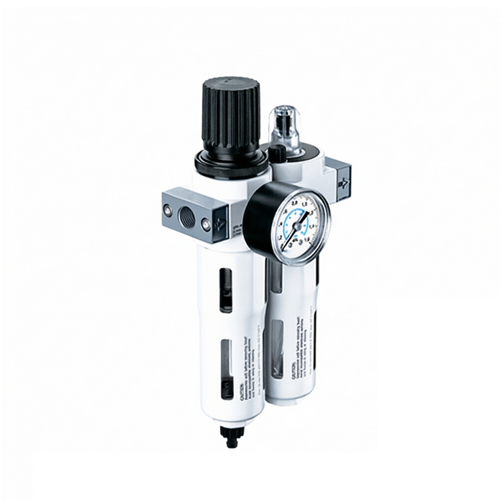

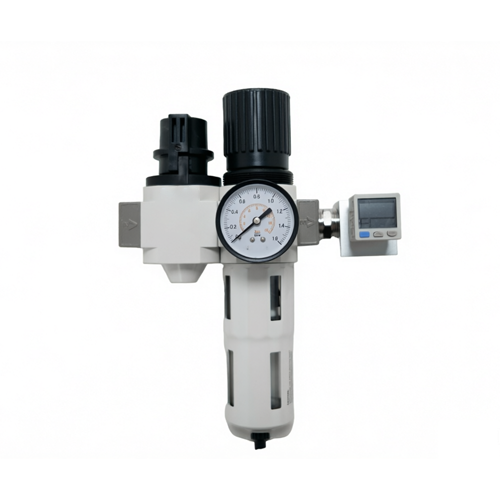

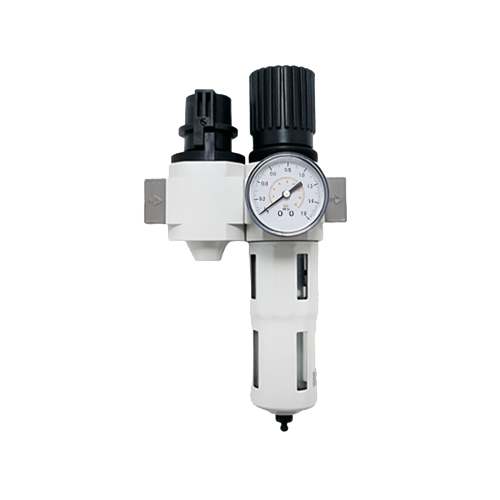

· Deep purification of air supply to ensure system cleanliness
· Precise pressure regulation for efficient atomized lubrication
· Compact design to optimize air supply piping layout
· Adjustable oil drip rate via regulating screw
|
Interface size
|
Option
|
|
G1/8
|
1/8
|
|
G1/4
|
1/4
|
|
G3/8
|
3/8
|
|
G1/2
|
1/2
|
|
G3/4
|
3/4
|
|
G1
|
1
|
|
Pressure adjustment range
|
Option
|
|
0.05~1.2MPa
|
-
|
|
0.05~0.7MPa
|
7
|
|
Filter level
|
Option
|
|
5μm
|
5M
|
|
40μm
|
-
|
|
Pressure gauge
|
Option
|
|
With pressure gauge
|
-
|
|
Without pressure gauge
|
0
|
|
Specifications
|
Option
|
|
Small-sized
|
MINI
|
|
Medium-sized
|
MIDI
|
|
Large-sized
|
MAXI
|
|
Draw off valve
|
Option
|
|
Manual
|
-
|
|
Semi-automatic
|
S
|
|
Automatic
|
A
|
Note: Select the appropriate configuration based on your specific application requirements. For any questions, please contact technical support.
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
