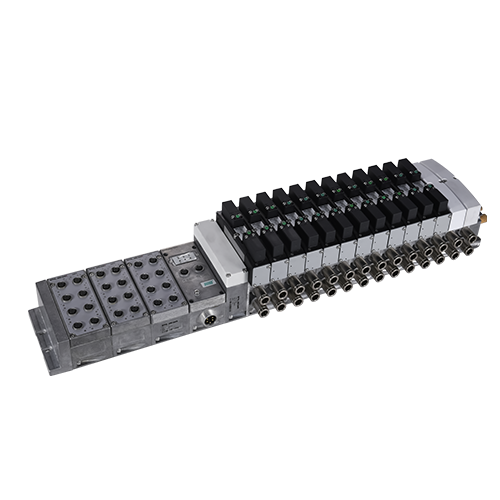

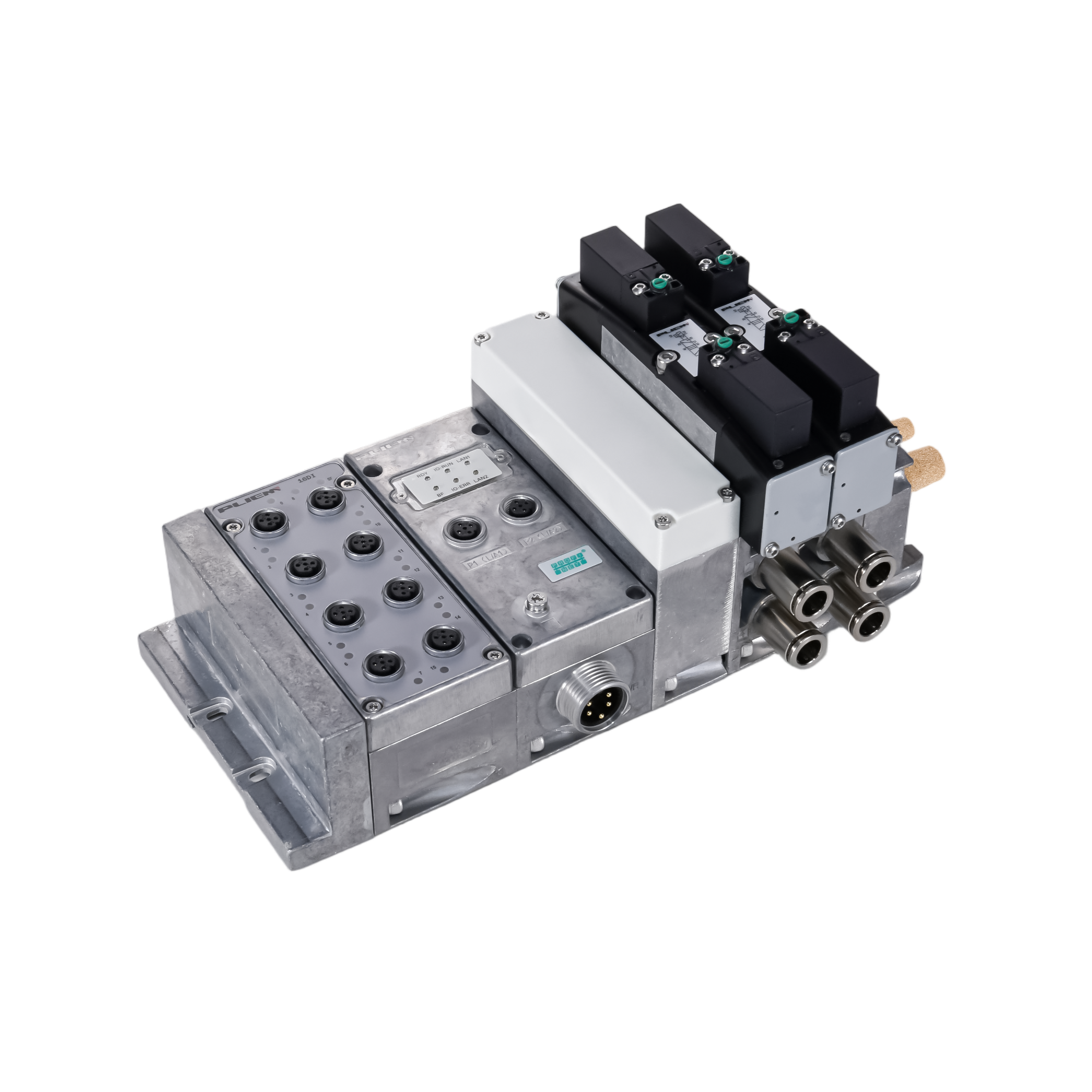

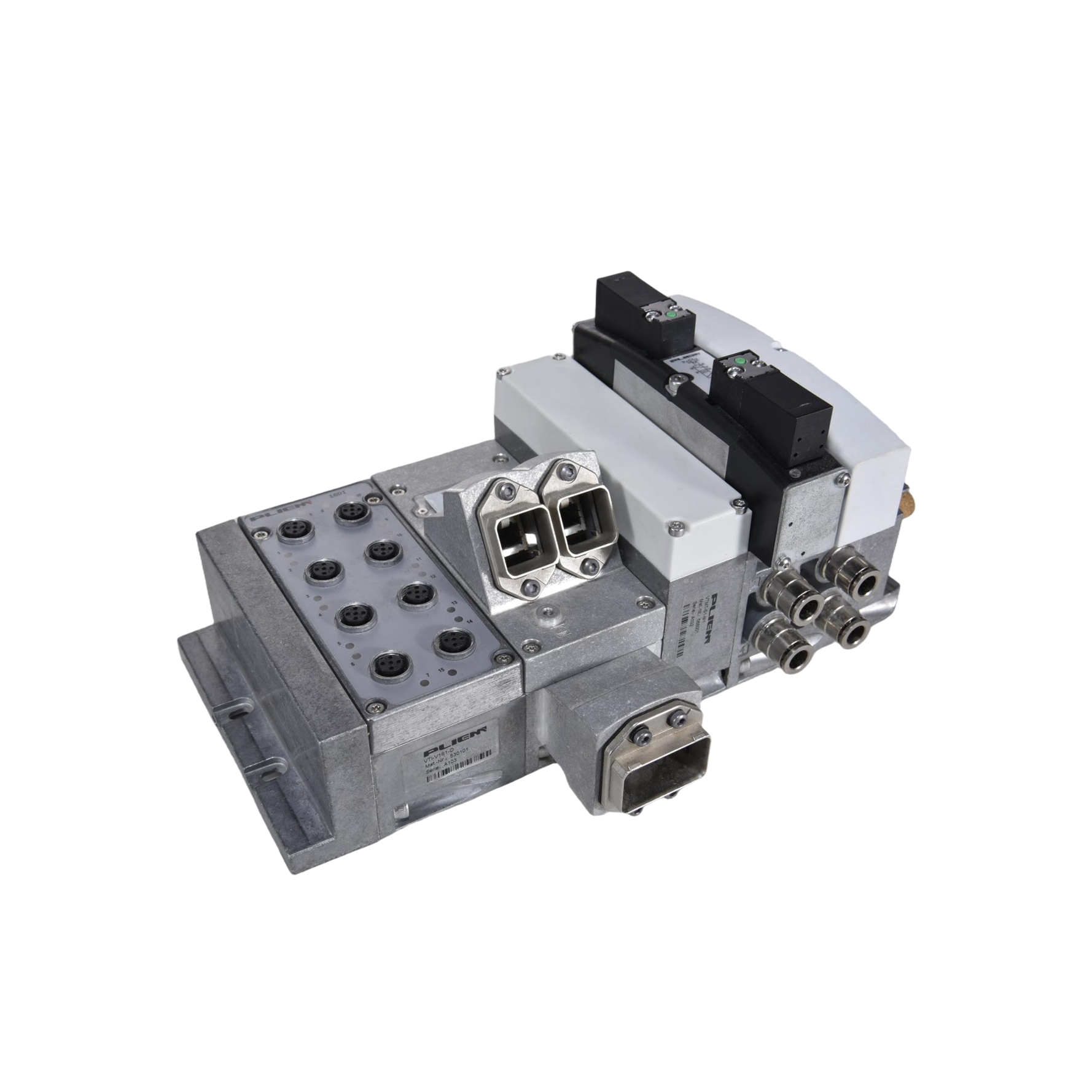

· Configurable for up to 32 I/O modules
· Supports up to 64 coils and 32 valve slices
· All-metal construction, IP67 rated
· Bus module compatible with multiple bus protocols
|
Electrical modules Note1)
|
Option
|
|
0 IO moudle
|
0
|
|
......
|
......
|
|
9 IO moudle
|
9
|
|
FS
|
Option |
| DI moudle(PNP) | DI |
| DI moudle(NPN) | NDI |
| DI moudle+Push-pull | DIPP |
| DO moudle | DO |
| AI moudle | AI |
| AO moudle | AO |
|
Bus Protocol
|
Option
|
| EtherCAT | EC |
| EtherNet/lP | EP |
| IO-Link Note2) | IL |
| PROFINET | PN |
| RJ45+Push-pull | PN1 |
| SCRJ+Push-pull | PN2 |
| PROFIBUS-DP | DP |
| CC-Link | CC |
| DeviceNet | DN |
| Multipole Sub-D 注2） | MP |
| WIFI | WI |
| PROFIsafe | PF |
|

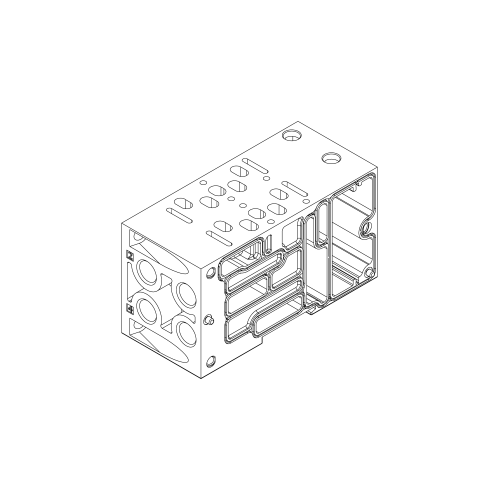

Valve plate base
|
Option |
| 18mm | A |
| 26mm | B |
| 42mm | C |
| 52mm | D |
|

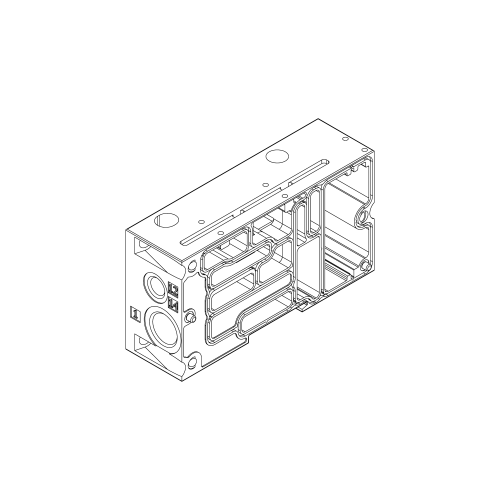

Auxiliary intake
Note3) |
U |
|

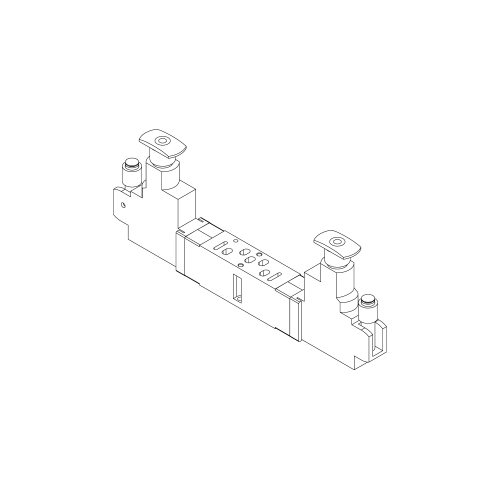

Function
|
Option |
| 5/2 single solenoid,pneumatic spring | M |
|
5/2 double solenoid
|
J |
|
5/3 pressurised
|
B |
|
5/3 closed
|
G |
|
5/3 exhaused
|
E |
|
2x3/2 NC/NC
|
K |
|
2x3/2 NO/NO
|
N |
|
2x3/2 NC/NO
|
H |
|
5/2 single solenoid mechanical spring
|
O |
| 5/3 Medium pressurised valve (14 lock) | SD |
| 5/3 Middle pressurised valve (14 lock) | SA |

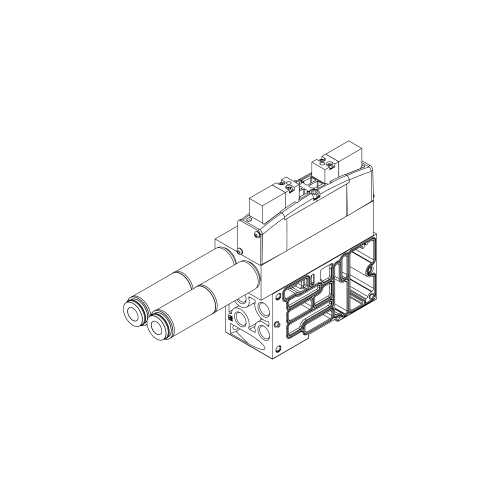

| Vacuum generator | VCC |

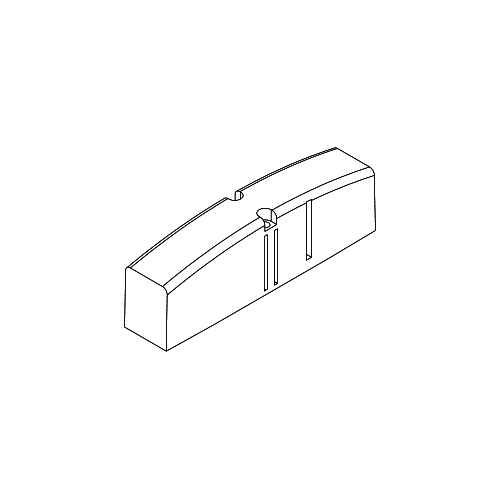

| Blanking plate | L |
| Air distribution manifold | ZO |

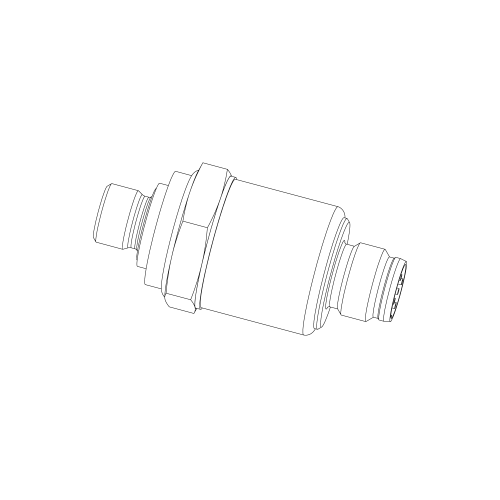

| Pressure switch | WH |
| Number of configurations | Option |
| 1 | 01 |
| 2 | 02 |
| ...... | ...... |
| Maximum | 32 |
Note 1):More than 9 electrical modules needauxiliary power supply
Note 2):MP and IL cannot be powered
Note 3):Auxiliary air intake supports pressure zoning
T-Partition: Port 1;TS-Partition: Ports 3 and 5;TST-Partition: Ports 1, 3, and 5.Please contact PLIEM for further inquiries
The automotive industry is among the earliest and most highly automated sectors. As a core component in automated control systems, the valve island enables precise regulation of industrial robot pneumatic gripper, dual-circuit water and air systems, fixtures, and related equipment through integrated and modular design. Its key features include:
• Integrated electro pneumatic platform
• Diverse power, communication, and sensor interfaces
• Multiple communication protocols
• Digital and analog inputs/outputs
• WIFI (optional)
